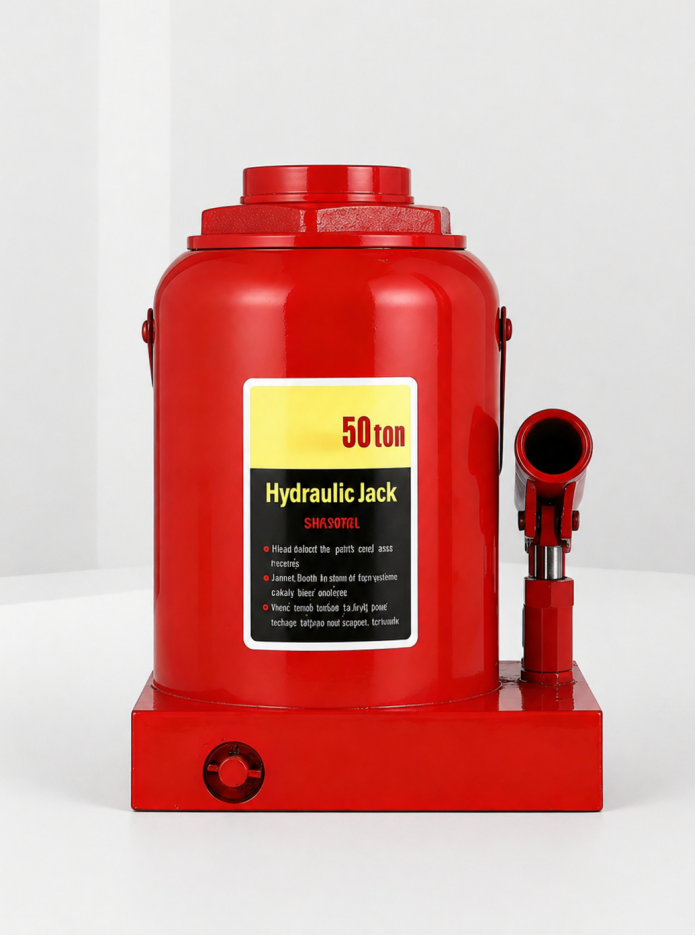

The Bottle Jack from Hebei ByaulPro Lifting Equipment Co., Ltd. has a compact, all-in-one design. It lifts smoothly and quickly, is easy to operate with little effort, and takes up very little space. This jack works well in many different environments, such as workshops, factories, and auto repair shops.
The main body of this product is constructed from Q235 steel, featuring a single-piece welded structure. It utilizes a hydraulic system to generate lifting force. It has obtained international certifications such as ISO and CE. With a load-bearing capacity ranging from 2 to 200 tons, the unit allows for height adjustment during operation by manipulating the top-mounted shims, thereby expanding its range of application.
|
Model |
Rated Load |
Net Weigh |
Min.Heigh |
Lifting Heigh |
Adjust Heigh |
Max.Heigh |
|
QYL-002 |
2 t |
2.18 kg |
145 mm |
80 mm |
50 mm |
275 mm |
|
QYL-003 |
3 t |
2.51 kg |
154 mm |
90 mm |
50 mm |
294 mm |
|
QYL-005 |
5 t |
3.2 kg |
170 mm |
100 mm |
50 mm |
320 mm |
|
QYL-008 |
8 t |
3.92 kg |
192 mm |
120 mm |
60 mm |
372 mm |
|
QYL-010-H |
10 t |
4.8 kg |
194 mm |
125 mm |
60 mm |
379 mm |
|
QYL-012 |
12 t |
5.56 kg |
200 mm |
125 mm |
60 mm |
385 mm |
|
QYL-016-H |
16 t |
6.2 kg |
200 mm |
125 mm |
60 mm |
385 mm |
|
QYL-020-H |
20 t |
7.15 kg |
215 mm |
135 mm |
60 mm |
410 mm |
|
QYL-032-H |
32 t |
10.5 kg |
242 mm |
145 mm |
60 mm |
447 mm |
|
QYL-050-H |
50 t |
17 kg |
260 mm |
150 mm |
60 mm |
470 mm |
|
HD-032-H |
32 t |
17 kg |
260 mm |
150 mm |
60 mm |
470 mm |
|
HD-050(Fixed)-H |
50 t |
24 kg |
295 mm |
180 mm |
- |
475 mm |
|
HD-050(adj.)-H |
50 t |
26.6 kg |
295 mm |
180 mm |
60 mm |
475 mm |
|
HD-100-H |
100 t |
62 kg |
335 mm |
180 mm |
- |
515 mm |
|
HD-200 |
200 t |
137 kg |
380 mm |
180 mm |
- |
560 mm |
Adjustable height:
The top features a retractable extension screw. Users can adjust the height of this screw to meet specific operational needs. This increases the product’s lifting height and broadens its application range.
Hydraulic system:
Powered by a hydraulic system, this jack produces stable lifting force. When paired with an extended handle, it allows for effortless operation and effectively boosts overall work efficiency.
Enlarged hydraulic cylinder:
Designed with a large-diameter hydraulic cylinder, this unit lowers the oil pressure needed during lifting. This reduces internal wear and effectively prolongs the service life of the product.
Equipped with a non-slip tread pattern on the top surface, this jack provides increased friction for enhanced stability and reliable safety during operation.
Finished with anti-rust and anti-corrosion coating, it performs well in diverse indoor and outdoor settings, while being simple to clean and maintain.
Boasting a fully welded body structure, the unit offers excellent rigidity and impact resistance. It will not easily deform or crack even under long-term heavy-duty use, greatly prolonging its service life and improving overall operational safety.
