The Hydraulic Cylinder Jack manufactured by Hebei ByaulPro Lifting Equipment Co., Ltd. is a high-quality low-profile jack. This product is available in a wide range of models, allowing users to select the appropriate version based on their specific application scenarios.
The Hydraulic Cylinder Jack from Hebei ByaulPro Lifting Equipment Co., Ltd. are engineered for heavy-duty lifting tasks across industrial, construction, and maintenance scenarios. Available in a full range of tonnages and stroke lengths, these single-acting hydraulic cylinders deliver reliable performance, precise control, and long service life.
|
Hydraulic Cylinder |
||||
|
Model |
Lifting Height |
Minimum Height |
Weight |
Package Dimensions |
|
5T |
7 mm |
41 mm |
0.9 kg |
23*16*14 cm |
|
10T |
11 mm |
53 mm |
1.85 kg |
23*16*14 cm |
|
20T |
13 mm |
62 mm |
3.2 kg |
23*16*14 cm |
|
30T |
14 mm |
66 mm |
5.15 kg |
23*16*14 cm |
|
50T |
18 mm |
77 mm |
8.9 kg |
23*16*14 cm |
|
100T |
21 mm |
93 mm |
19.5 kg |
25*20*17 cm |
|
150T |
21 mm |
88 mm |
23 kg |
25*24*18 cm |
|
200T |
21 mm |
101 mm |
39 kg |
32*32*18 cm |
|
Short-Type Hydraulic Cylinder |
||||
|
Model |
Lifting Height |
Minimum Height |
Weight |
Package Dimensions |
|
10T |
50 mm |
108 mm |
2.5 kg |
23*16*14 cm |
|
20T |
50 mm |
111 mm |
4.5 kg |
23*16*14 cm |
|
30T |
50 mm |
112 mm |
6.4 kg |
23*16*14 cm |
|
50T |
50 mm |
117 mm |
9 kg |
23*16*14 cm |
|
100T |
50 mm |
125 mm |
20.5 kg |
25*24*18 cm |
|
150T |
50 mm |
126 mm |
29 kg |
25*24*18 cm |
|
200T |
50 mm |
131 mm |
42 kg |
32*32*18 cm |
|
Long-Type Hydraulic Cylinder |
||||
|
Model |
Lifting Height |
Minimum Height |
Weight |
Package Dimensions |
|
10T |
100 mm |
156 mm |
3.6 kg |
23*16*14 cm |
|
20T |
100 mm |
160 mm |
6.5 kg |
23*16*14 cm |
|
30T |
100 mm |
165 mm |
9.1 kg |
25*20*17 cm |
|
50T |
100 mm |
166 mm |
12.6 kg |
25*20*17 cm |
|
100T |
100 mm |
176 mm |
30 kg |
25*24*23 cm |
|
150T |
100 mm |
176 mm |
39 kg |
25*24*23 cm |
|
200T |
100 mm |
181 mm |
57 kg |
32*32*32 cm |
|
Extended-Length Hydraulic Cylinder |
||||
|
Model |
Lifting Height |
Minimum Height |
Weight |
Package Dimensions |
|
10T |
150 mm |
206 mm |
4.7 kg |
23*16*14 cm |
|
20T |
150 mm |
210 mm |
8.2 kg |
25*20*17 cm |
|
30T |
150 mm |
214 mm |
11.6 kg |
25*20*17 cm |
|
50T |
150 mm |
217 mm |
15.9 kg |
25*20*17 cm |
|
100T |
150 mm |
226 mm |
34 kg |
25*24*31 cm |
Compact Design:
Featuring a small footprint and lightweight construction—with the lightest model weighing as little as 0.9 kg—this product facilitates operations in confined spaces.
Split-Unit Design:
Utilizing a split-unit configuration in conjunction with a hydraulic pump, the system enables remote operation and precise lifting, thereby enhancing both operational flexibility and safety.
Multi-Cylinder Synchronous Operation:
Thanks to its split-unit design, users can connect multiple jacks simultaneously to a single hydraulic pump to achieve synchronized lifting. This ensures uniform load distribution across large, heavy objects, effectively preventing tilting.
Equipped with quick-connect couplings featuring a self-sealing mechanism, the oil circuit is automatically cut off during connection and disconnection. This facilitates the rapid installation, removal, and replacement of equipment.
The load-bearing surface features an anti-slip design to prevent slippage while lifting heavy objects, thereby enhancing operational safety.

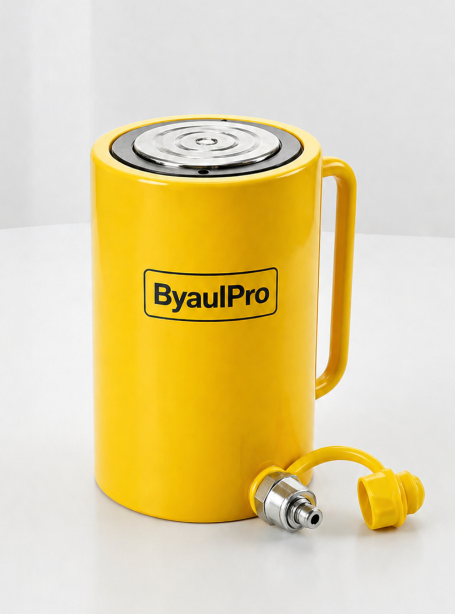

Fitted with a portable carrying handle, the unit is easy to transport and hoist, making it ideal for applications requiring frequent relocation.
