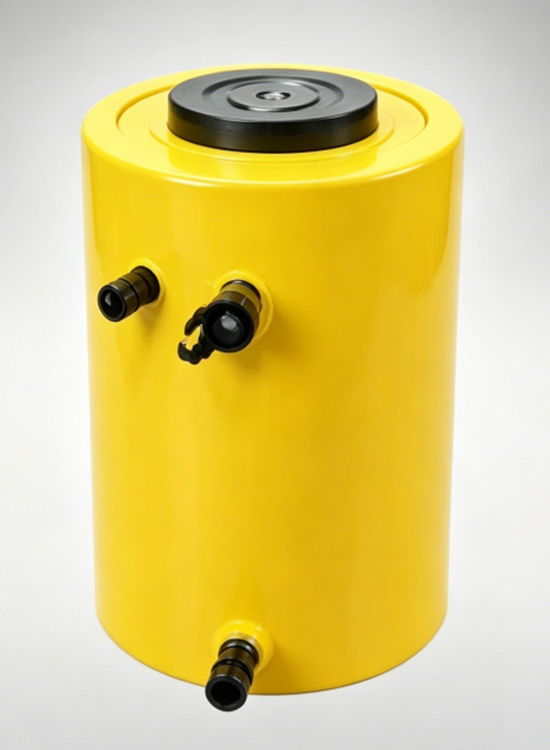

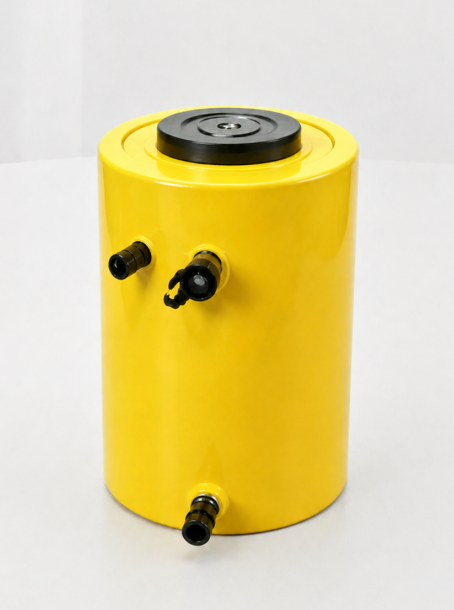

The Powered Hydraulic Cylinder Jack from Hebei ByaulPro Lifting Equipment Co., Ltd. is a premium low-profile lifting solution with a comprehensive model range. Customers can choose the ideal configuration to match their exact operational requirements.
Designed for heavy lifting in industry, construction and equipment maintenance, our Powered Hydraulic Jacks deliver versatile tonnage and stroke options. They combine dependable performance, accurate control and extended durability for professional use.
|
Model |
Lifting Height |
Min.Height |
|
20T |
200 mm |
338 mm |
|
30T |
200 mm |
338 mm |
|
50T |
200 mm |
338 mm |
|
100T |
200 mm |
366 mm |
|
200T |
200 mm |
396 mm |
|
300T |
200 mm |
440 mm |
|
500T |
200 mm |
520 mm |
|
630T |
200 mm |
565 mm |
|
800T |
200 mm |
630 mm |
|
1000T |
200 mm |
630 mm |
Compact Design:
This product features a compact footprint and a lightweight structure; notably, its minimum lifting height is just 338 mm, facilitating operation within confined spaces.
Electric Lifting and Lowering:
Powered by an external electric pump, this system enables fully electric control of both lifting and lowering operations. It significantly accelerates operational speed and boosts work efficiency. Furthermore, it allows for more precise height adjustment, facilitating accurate positioning.
Ultra-Heavy Tonnage Capacity:
This product features formidable heavy-lift capabilities, boasting a maximum load capacity of up to 1,000 tons. It is designed to meet the lifting requirements of massive loads, maintaining stable and reliable performance even under extreme conditions—such as the installation of heavy machinery or the jacking of large structural components—thereby effortlessly handling a wide range of high-intensity, heavy-duty lifting operations.
Equipped with quick-connect couplings featuring a self-sealing mechanism, the oil circuit is automatically cut off during connection and disconnection. This facilitates the rapid installation, removal, and replacement of equipment.
The load-bearing surface features an anti-slip design to prevent slippage while lifting heavy objects, thereby enhancing operational safety.
Fitted with a portable carrying handle, the unit is easy to transport and hoist, making it ideal for applications requiring frequent relocation.
