Hebei ByaulPro Lifting Equipment Co., Ltd. presents the Swivel Moving Skate, a highly flexible heavy-duty handling tool designed for safe, steerable transportation of heavy machinery, molds, and large equipment in factories, workshops, warehouses, and equipment maintenance sites. With multiple load capacities available, it meets various heavy-load handling, positioning, and relocation needs with outstanding maneuverability and stability.

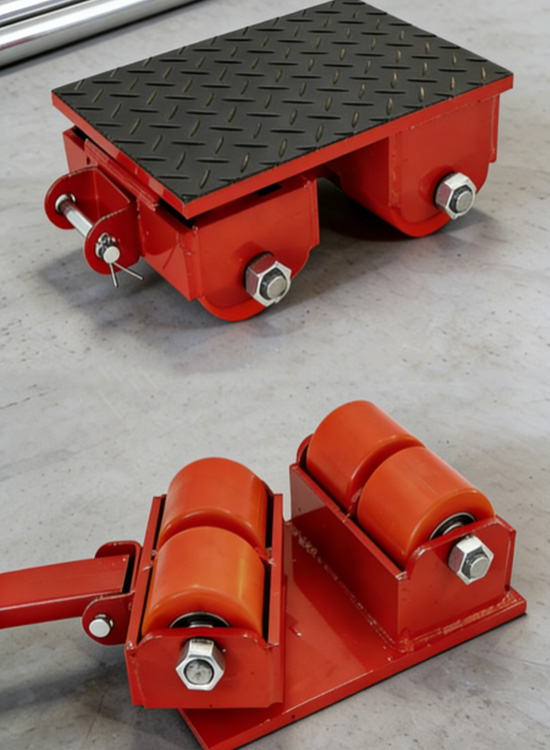

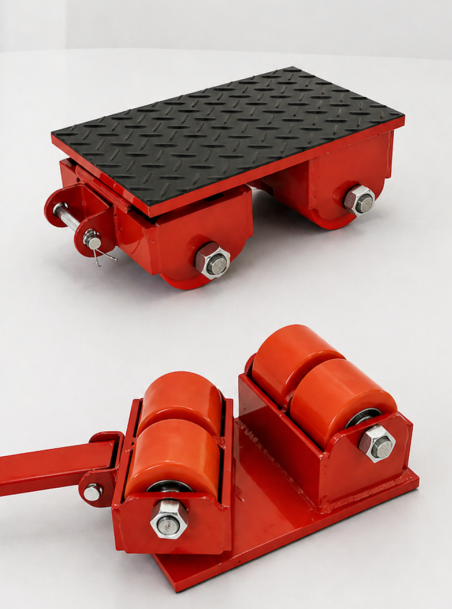

The Swivel Moving Skate is a professional steerable handling trolley built for flexible movement and heavy-duty bearing. The main frame adopts high-strength steel structure with reinforced welding, providing excellent rigidity and long service life. It is manually driven without any motor or power supply, safe and reliable, and can be used in any working environment. Equipped with steering wheels and a traction handle, it can easily turn, adjust direction, and move freely in narrow spaces, making it the ideal choice for flexible heavy-load transportation.
|
Model |
Rated Load |
Number of Rollers |
Net Weight |
|
|
Rubber Roller |
Steel Roller |
|||
|
SV-6 |
6 t |
4 |
11.5 kg |
15.5 kg |
|
SV-8 |
8 t |
6 |
15.5 kg |
21.5 kg |
|
SV-12 |
12 t |
8 |
20.5 kg |
28.5 kg |
|
SV-15 |
15 t |
9 |
22.5 kg |
31.5 kg |
|
SV-18 |
18 t |
12 |
24 kg |
41 kg |
|
SV-24 |
24 t |
16 |
32 kg |
61 kg |
|
SV-32 |
32 t |
20 |
39 kg |
70 kg |
Flexible Steering Wheels:
This swivel moving skate is equipped with high-performance steering wheels that support free turning and direction adjustment at any angle. It can easily bypass obstacles, pass through narrow passages, and achieve precise positioning of heavy equipment, greatly improving handling flexibility in complex workshops.
Equipped with Traction Handle:
Designed with a special traction handle, the skate is labor-saving and convenient to pull, push, and steer. The handle provides a firm grip and stable force application, allowing operators to control the moving direction and speed easily, even under full-load conditions.
High‑Hardness Wear‑Resistant Wheels:
Adopting high-hardness polyurethane (PU) wheels, the skate provides strong pressure resistance, wear resistance, and floor protection. It runs smoothly on concrete, epoxy, and painted floors without scratching or damaging the ground surface.
The top bearing plate is designed with anti-slip tread to increase friction and prevent heavy cargo from sliding or shifting during movement, ensuring transportation stability.
The overall structure is compact, low-profile, and solid, with strong stability under full load.
No power supply or motor is needed, making it maintenance-free, safe, and durable for long-term heavy-duty use in industrial environments.
